New 2026 RVT_ELEC_01101 Dumps for Autodesk Certified Professional Certified Exam Questions & Answer [Q16-Q31]

Q16. Refer to exhibit.

A family in a project contains the following types:
The following edits are made in the Family Editor and loaded into the project:
1. The type Plain is renamed to Standard
2 A new type is added named GFCI
Which types does this family now have in the project?
1. The type Plain is renamed to Standard

Above Counter. Plain. Standard

Above Counter. GFCI. Standard

Above Counter. GFCI. Plain. Standard

Above Counter. Standard

Q17. An electrical designer has created a family and loaded It Into the project. The designer wants to connect the family to a power circuit but the Power icon is not available when the family Is selected.
How should the designer fix the problem?

Set the distribution system for the family.

Set the family parameter to Shared.

Change the Voltage parameter value to non-zero.

Add an electrical connector to the family.

Q18. Refer to the exhibit.

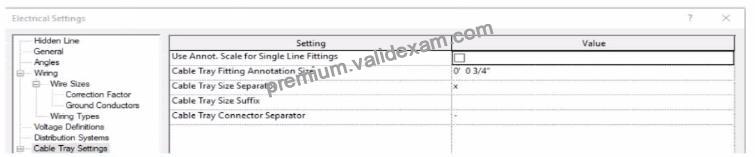

An electrical designer models a cable tray in a project and decides to check the box (or Use Annot. Scale tor Single Line Fittings and change the Cable Tray Fitting Annotation Size to 1/8″ (3 mm).
What is the result?
(The image is presented m Imperial units: 1 In = 25 mm (Metric units rounded].)

All cable tray fittings in the project are changed per the new settings.

All cable tray fittings in the project change per the new settings when a views detail level is set to Fine.

New cable tray fittings use the new settings in views set to 1/8″ (3 mm) scale.

New cable tray fittings use the new settings after the change.

Q19. Elements are added to a design option. The electrical designer needs an additional design option in the option set. All of the same elements are needed in both design options Which two methods will duplicate the element for the new design option? (Select two.)

Open two views side by side and drag and drop from one view to another.

Open the new design option and pick Reveal Hidden to select the items to copy.

In the Design Options dialog, pick the original design option and select Duplicate.

Use Copy to Clipboard and Paste > Aligned to Current View in the new design option.

Select the items and use Add to Set.

In Autodesk Revit, Design Options are used to explore multiple design alternatives within the same project environment. This feature is often employed by electrical designers to model different lighting layouts, circuiting approaches, or equipment placements without duplicating the entire project.
When an additional design option is created within the same option set, and the designer needs to include all the same elements that already exist in another design option, Revit offers two effective ways to duplicate these elements while preserving their type, parameters, and host relationships.
According to the Autodesk Revit MEP User’s Guide (Chapter: Working with Design Options), it clearly describes:
“To create a copy of an existing design option within an option set, open the Design Options dialog box, select the desired option, and click Duplicate. This creates a new option containing identical elements and maintains their relationships and constraints.” This confirms Option C as correct because duplicating an option from the Design Options dialog automatically replicates all its elements into the new design option within the same option set.
Furthermore, the guide continues:
“Alternatively, when working with a specific design option view, you can use the Copy to Clipboard and Paste Aligned > Aligned to Current View commands to duplicate selected elements into another active design option. These elements are placed in the same location and remain associated with the new design option.” This validates Option D as the second correct method, allowing manual duplication of elements between options while keeping spatial alignment intact.
Other options listed are incorrect for the following reasons:
A (Drag and Drop) is not supported between design options; it only works between views in the same option.
B (Reveal Hidden) only displays hidden elements; it doesn’t expose design option geometry for copying.
E (Add to Set) transfers elements into the same design option set, not between individual design options.
Therefore, the two valid and Autodesk-confirmed methods to duplicate all elements between design options are:
C). Duplicate from Design Options dialog, and D. Copy/Paste Aligned to Current View.
References:
Autodesk Revit MEP 2011 User’s Guide, Chapter 13: Working with Design Options, pp. 364-367.
Autodesk Revit Architecture 2020 Help, “Duplicating Design Options and Copying Elements Between Options.” Smithsonian Facilities Revit Template User’s Guide (2021), Section 6.3.2: Managing Design Options in Coordination Views.

Q20. Refer to exhibit.

An electrical designer tries to place a generic annotation family in a data device family. The designer receives the error message as shown. What should the designer do?

Change the Detail Level to Coarse.

Edit the generic annotation family and set it to Shared.

Set the view to the Ref. Level.

Select the Maintain Annotation Orientation parameter checkbox

Q21. Refer to exhibit.

An electrical designer is placing electrical equipment. When the electrical designer selects a component in the contextual ribbon, the Placement panel appears in the contextual ribbon.
Which condition does this Placement panel indicate?

The component was created using a lace-based template.

The component was created using a wall-based template

The component was created using a floor-based template.

The component is set to use the Always Vertical option

The Placement panel shown in the exhibit – with options such as Place on Vertical Face, Place on Face, and Place on Work Plane – is displayed only when the family being placed was created using a wall-hosted (face-based or vertical face-based) template. This indicates that the family is designed to be hosted on a vertical surface, such as a wall, rather than a floor or level.
According to the Autodesk Revit MEP User’s Guide (Chapter 44 “Creating and Modifying Families”):
“When placing a hosted family, the placement options depend on the family’s host type.
Wall-based families display the Place on Vertical Face option.
Ceiling-based families display Place on Face or Place on Work Plane.
Floor-based families display Place on Work Plane only.”
The “Place on Vertical Face” option specifically appears for wall-hosted or face-based components because it allows the user to select a vertical plane, typically representing a wall surface. This confirms that the family template used during creation was Wall-based (commonly “Electrical Equipment – Wall Based.rft” or “Generic Model – Wall Based.rft”).
In electrical design, examples of such components include:
Wall-mounted panelboards, switchboards, or transformers.
Receptacles or lighting control devices hosted on walls.
The Smithsonian Facilities Revit Template Guide reinforces this explanation:
“Wall-based components, such as surface-mounted panels, display the Place on Vertical Face option. This confirms the family is wall-hosted and cannot be placed freely on floors or reference planes.” Why the Other Options Are Incorrect:
A . Face-based template: Would show “Place on Face” (not necessarily limited to vertical).
C . Floor-based template: Displays “Place on Work Plane” only.
D . Always Vertical option: Controls orientation (rotation relative to surface), not placement host type.
Therefore, the Placement panel confirms the component was created using a wall-based family template, allowing it to be attached only to vertical surfaces.
References:
Autodesk Revit MEP User’s Guide – Chapter 44 “Creating and Modifying Families,” pp. 1028-1032 Smithsonian Facilities Revit Template User’s Guide – Section 7.4 “Family Hosting and Placement Behavior,” pp. 72-74 Autodesk Revit Electrical Design Essentials – “Wall-Based Equipment and Hosting Parameters in Family Creation”

Q22. Refer to exhibit.

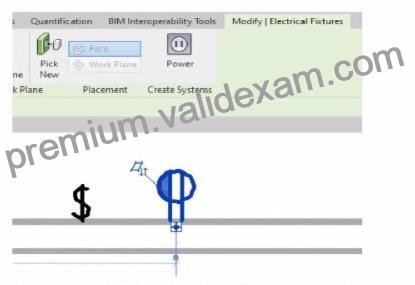

An electrical designer is circuiting a dwelling unit. The receptacle (electrical fixture) shown must be controlled by the switch (lighting device) shown to switch a plug-in lamp When the receptacle is selected, Revit does not provide an option to add the receptacle to a switch system.
What is causing this issue?

A switch system has not yet been created.

The receptacle’s “Switchable” option Is not selected within the family editor.

The switch and the receptacle are not on the same circuit

Only lighting fixtures can be added to switch systems.

In Autodesk Revit Electrical Design, when an electrical designer attempts to control a receptacle (an Electrical Fixture family) with a switch (a Lighting Device family) as part of a switch system, Revit will only allow this connection if the receptacle’s family has been configured as Switchable within the Family Editor.
According to the Autodesk Revit MEP User’s Guide (Chapter 17 – “Electrical Systems”):
“Revit allows you to add elements such as lighting fixtures or receptacles to a switch system only if the family includes a switchable connector. The ‘Switchable’ parameter must be enabled in the Family Editor to allow this connection.” This means that for the receptacle shown in the exhibit to appear as an available component for switching, the Electrical Connector within its family must have the Switchable property checked. This parameter is found under:
Family Editor → Select Connector → Properties Palette → Electrical – Data → Switchable.
If this option is not enabled, Revit treats the receptacle as a standard unswitched outlet and will not display it in the switch system creation dialog. Once the option is checked, the designer can reload the family into the project and associate it with a switch system normally.
Additionally, the Smithsonian Facilities Revit Template User’s Guide explains this concept as follows:
“To associate receptacles with lighting switches, ensure that the receptacle family has a switchable connector. Without this setting, the device will not appear as an assignable component to a switch system.” This distinction is important in residential electrical modeling, where switched receptacles are common for plug-in lamps. Lighting circuits can include both Lighting Fixtures and Switchable Receptacles when the family configuration supports it.
Incorrect Options Explanation:
A . A switch system not being created is irrelevant – the issue occurs before system creation.
C . Being on the same circuit doesn’t affect switchability; it affects electrical load connection.
D . Incorrect – Revit supports switchable receptacles if properly configured.
Therefore, the correct answer is B. The receptacle’s “Switchable” option is not selected within the family editor.
References:
Autodesk Revit MEP User’s Guide – Chapter 17 “Electrical Systems,” pp. 417-421 Autodesk Revit Electrical Design Essentials – Section “Creating and Editing Electrical Fixtures and Switch Systems” Smithsonian Facilities Revit Template User’s Guide – Section 8.4 “Switchable Receptacle Family Standards,” p. 89

Q23. Refer to exhibit.

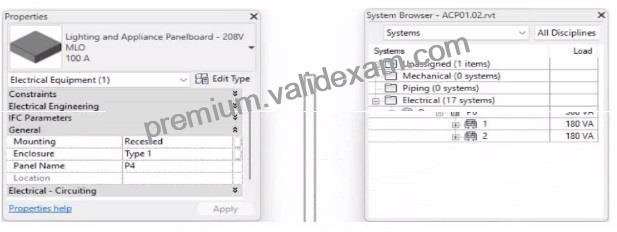

To which panel Is Panel P4 circuited?

Panel P 1

Panel P 2

Panel P 5

Panel P 3

Q24. An electrical designer is working on a project with multiple buildings. The designer wants to organize the Project Browser by building For example, all views related to Building A will be sorted under Building A. and all views related to Building B will be sorted under Building B.
The designer decides to create a new parameter, assign it to views, and then sort the Project Browser according to the new parameter.
Which parameter should the designer use?

A reporting parameter

A global parameter

A project parameter

A family parameter

Q25. An electrical designer has created a family and loaded It Into the project. The designer wants to connect the family to a power circuit but the Power icon is not available when the family Is selected.
How should the designer fix the problem?

Set the family parameter to Shared.

Add an electrical connector to the family.

Change the Voltage parameter value to non-zero.

Set the distribution system for the family.

Q26. A project is almost at the end of design. The electrical designer needs to make sure electrical loads as reported by load summaries accurately reflect all modeled loads. How should a designer view a list of all modeled electrical connectors that are not connected to a circuit?

Use the command Check Circuits.

Review the System Browser.

Create a circuit schedule.

Use the command Show Disconnects.

Q27. How can an electrical designer see changes from other users without saving their own work to the central model?

Relinquish All Mine

Reload Latest

Manage Worksets

Worksharing Display

In Autodesk Revit, particularly for electrical and MEP design disciplines using a workshared model, the command “Reload Latest” allows a designer to see changes made by other users without saving or publishing their own work to the central model. This tool ensures that while the designer continues to work locally, their environment stays updated with the latest modifications made by colleagues.
According to the Autodesk Revit MEP User Guide (Chapter 54 – Working in a Team), under the section Loading Updates from the Central Model, it states:
“As you work, you can see the changes other team members have made to the project after they have been synchronized with the central model. You can load updates from the central model without publishing your changes to the central model.
In your local file, click Collaborate tab ➤ Synchronize panel ➤ (Reload Latest).” This confirms that the Reload Latest command refreshes your local file with any modifications from the central file that others have synchronized, but it does not send your local changes back. It is a critical feature for coordination in a team environment, especially when multiple designers-such as electrical, mechanical, and structural engineers-are contributing simultaneously to a shared BIM model.
By contrast:
A . Relinquish All Mine only releases ownership of elements but doesn’t update the local model.
C . Manage Worksets is for controlling visibility and editability of worksets.
D . Worksharing Display visually identifies ownership and status but doesn’t refresh model data.
Therefore, when an electrical designer needs to review updates from others (for example, when a lighting layout needs coordination with architectural ceiling adjustments), the proper workflow is to use Reload Latest, ensuring all new information from the central model appears instantly without saving or affecting their current unsaved edits.
References:
Autodesk Revit MEP 2011 User’s Guide, Chapter 54: Working in a Team, “Loading Updates from the Central Model,” pp. 1332-1333.
Autodesk Revit Structure User’s Guide, Chapter 49: Working in a Team, “Loading Updates from the Central Model,” p. 1230.
Smithsonian Revit Template Guide (2021), Section 6.3.1 How Worksharing Works, confirming synchronization and reloading behavior for shared Revit environments.

Q28. Refer to the exhibit.

Project Browser > Conduits > Conduits with Fittings > Single Line Symbology

Properties > Edit Type > Single Line Symbology

Object Styles > Conduits > Rise/Drop > Single Line Symbology

Electrical Settings > Conduit Settings > Rise Drop > Single Line Symbology

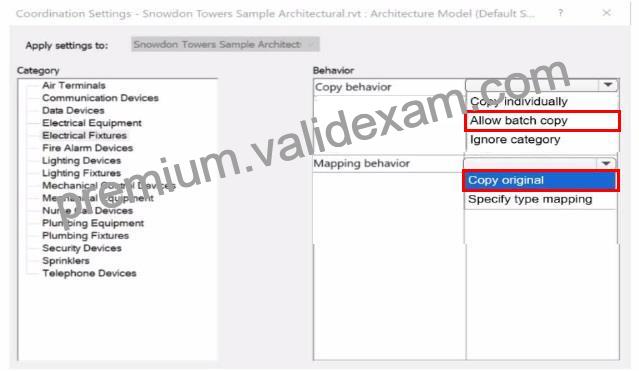

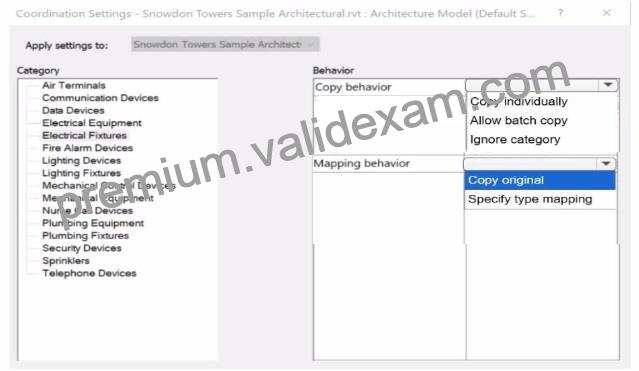

Q29. An electrical designer receives an architectural model and links it into the electrical model.
The designer wants to use the Copy/Monitor tool to copy the exact electrical fixtures created by the architect.
The designer also wants the software to automatically detect new electrical fixtures added to the architectural model.
Select the correct coordination settings from the drop-down lists

Q30. Refer to exhibit.

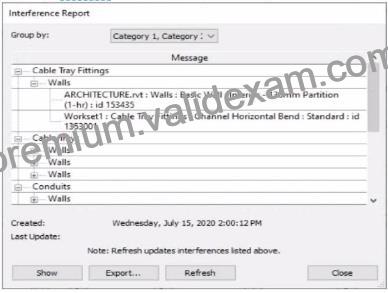

An electrical designer runs an interference check and reviews the Interference Report.
How can the designer select the cable tray fitting referenced in the interference to resolve the clash?

Click Export, expand Cable Tray Fittings, and select Channel Horizontal Bend: Standard.

Double-click the fitting that appears in the list.

Select the row with the cable tray fitting, click Show, and select the fitting.

Select the row with the cable tray fitting, and activate IDs of Selection.

Q31. Refer to exhibit.
(The image is presented in Imperial units: 1 In = 25 mm (Metric units rounded).)

In the space properties for the space, the Lighting Calculation Luminaire Plane is Not Computed. What is causing this issue?
